Sanitary solenoid valve
B81MS Sanitary solenoid valve
B81MS and B81HP sanitary solenoid valves are widely used in places where there is a need for hygiene in the pharmaceutical, food, environmental, and water treatment industries.
Quality
Price
Fast
- Complete solenoid valve solution
- Salse：+86-577-86989863 13456060066
- Fax：+86-577-86920866
- Service：+86-577-86926655 85857018
- Summary
- Model
- Parameter
Application
B81MS and B81HP sanitary solenoid valves are widely used in places where there is a need for hygiene in the pharmaceutical, food, environmental, and water treatment industries.
Features
Exquisite appearance, sanitary standard; German technology, stable performance; authoritative coils, not easy to burn; in the pipeline system with high requirements for hygiene.
Principle
It is a combination of direct motion and pilot type. When there is no pressure difference between the inlet and the outlet, after energization, the electromagnetic force directly lifts the pilot small valve and the main valve closing member upward, and the valve opens. When the inlet and the outlet reach a pneumatic differential pressure, after the energization, the electromagnetic force leads the small valve, the pressure of the lower chamber of the main valve rises, and the pressure of the upper chamber drops, so that the main valve is pushed upward by the pressure difference; when the power is off, the pilot valve uses the spring. The force or medium pressure pushes the closure and moves down to close the valve.

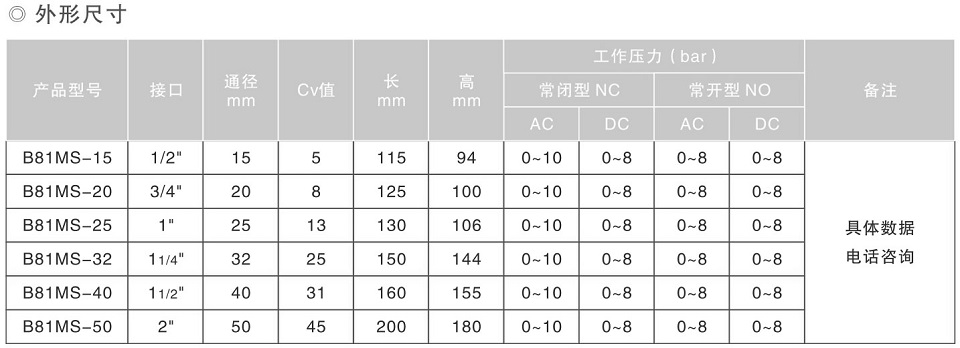

Parameter
Control method: normally open, normally closed.
Power supply voltage: DC12~220V; AC24~380V.
Body material: stainless steel, SS304, SS316, SS316L.
Applicable medium: water, gas, clean water source.
Pressure range: 0~1.0MPa
Temperature range: -20~200°C
Medium viscosity: less than 50C St (more than custom).
Protective performance: dustproof, waterproof and explosion-proof. Choose according to working conditions
Wiring method: terminal block type, lead type, plug type.
Connection method: clamp.
